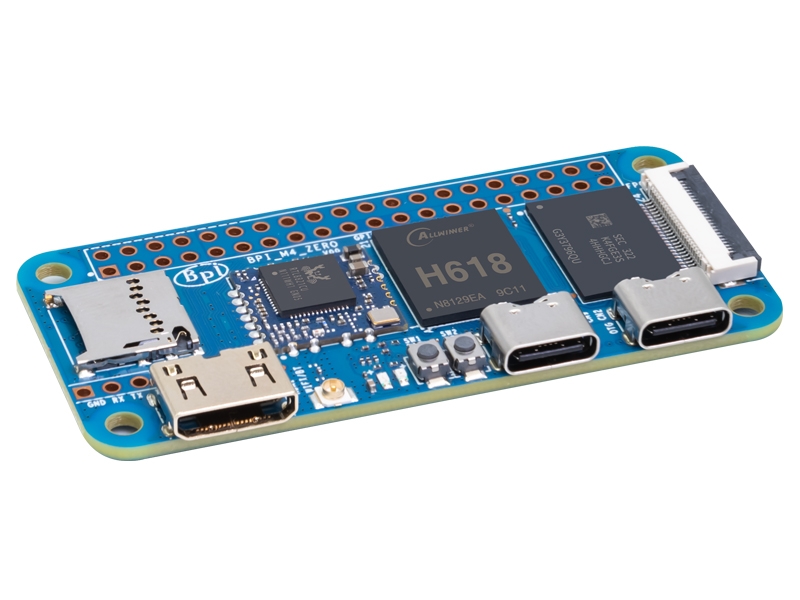

Banana Pi BPI-M4 Zero with Allwinner H618 chip design with 2G RAM

  • Allwinner H618, Quad-core ARM Cortex™-A53 processor
  • ARM Mali G31 GPU
  • 2.4G/5G WIFI & Bluetooth 4.2
  • 8G eMMC flash memory
  • 1x USB2.0 Type-C OTG, 5V power supply
  • 1x USB2.0 Type-C
  • 1x miniHDMI 2.0a
  • 1x 24-pin FPC connector
  • 1x USB2.0
  • 1x 100Mbps Ethernet

    Banana Pi BPI-M4 Zero is the successor model of BPI-M2 Zero. The SOC is upgraded to Allwinner  H618 quad-core A53 . The memory is upgraded to 2G  LPDDR4, and 8G eMMC onboard . It supports 5G WiFi and BT, and the USB interface has also been upgraded to type-C.

    It has the same form factor and 40-pin connector as the Raspberry Pi Zero W, and it will fit most Zero W cases and accessories.

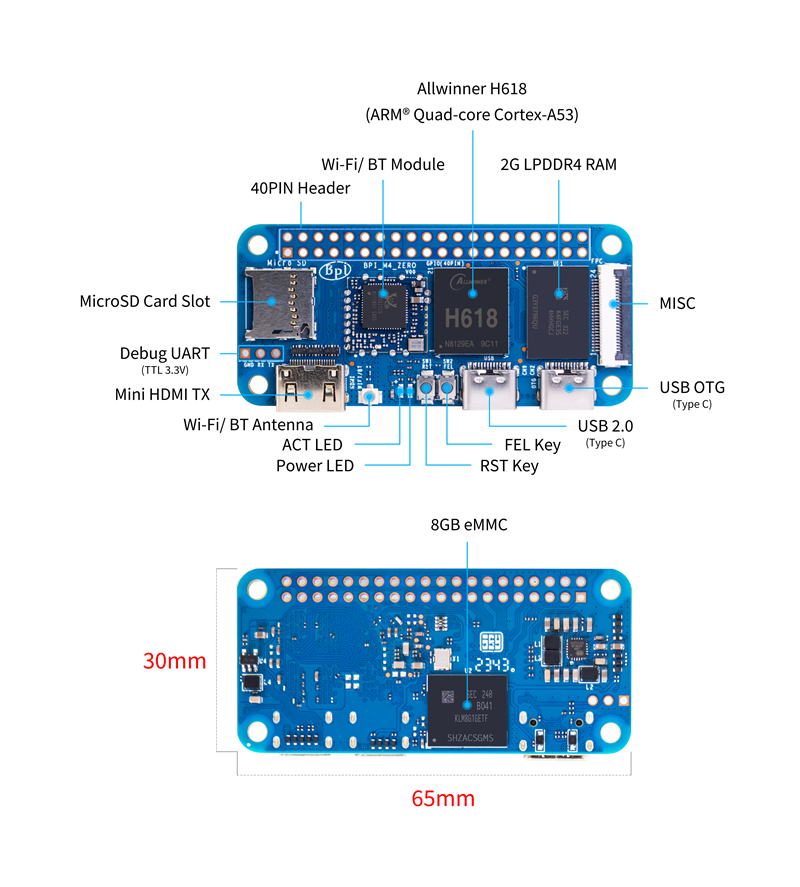

    Hardware interface:

    Hardware Spec:
    Hardware Specification of Banana pi BPI-M4 Zero
    CPU Allwinner H618, Quad-core ARM Cortex™-A53 processor, 64-bit, up to 1.5GHz
    GPU ARM Mali G31 GPU
    Memory 2 GB LPDDR4
    Storage 8G eMMC flash
    SD card MicroSD card slot, SDIO3.0
    Wireless 2.4G/5G WiFi and Bluetooth 4.2
    HDMI 1x miniHDMI 2.0a (up to 4K@60Hz with HDR10, CEC, DDC, SCDC), HDMI digital Audio output
    USB 1x USB2.0 Type-C HOST, 1x USB2.0 Type-C OTG
    40-pin header 28 pins GPIO and Power (+5V, +3.3V and GND)
    24-pin FPC 0.5mm pitch FPC connector, 1x USB2.0, 1x IR, 1x 100Mbps Ethernet
    9 pins GPIO, UART,TWI/I²C, PWM, PCM/I²S
    Buttons Reset, FEL
    LED Power Status and Activity status
    Power 5V@3A via USB Type-C
    Size 65mm × 30mm
    Online Wiki documents:
